| Models | SENSORLED16WXXBK | |||
|---|---|---|---|---|
| Wattage | 16W | |||
| Lumens | 1520 lm | |||
| Input Voltage | 100-240V~50/60Hz | |||
| Power Factor | 0.95, Flicker Free | |||
| Colour Temperatures | 3000K;4000K;5000K;6000K | |||
| IP Rating | IP54 | |||
| Dimming (Options) | DALI - Dali Dimming;DSI - Digital Serial Interface; AD - Analogue Dimming;DIM - Leading/Trailing/Universal | |||
| Beam Angle | 90° | |||
| Detection Beam Angle | 180° | |||
| CRI | ≥80 Ra | |||

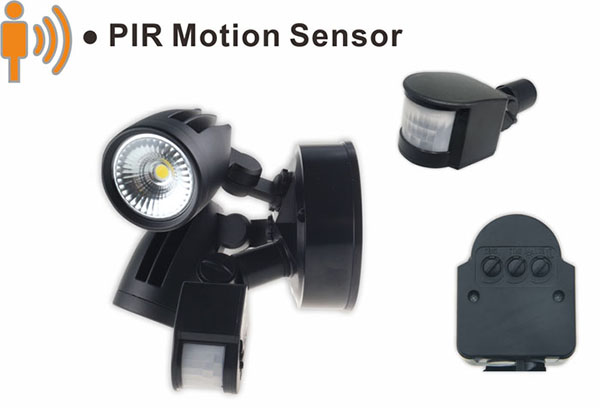

| Sensor | Built-in PIR Motion Sensor | |||
| Detection Range | Max. 10 metres at 24 Scan | |||
| Duration Time Adjustment | 5 Seconds to 6 Minutes | |||
| Detection Circuitry | Passive Infrared (PIR) | |||
| Body Material | ABS | |||
| Product Colour | Black | |||
| Min/Max Operating Temp | -20℃ /+45℃ | |||
| Life Time | 40,000 hrs | |||
| Warranty | 3 years | |||
| Certificates | SAA,C-Tick, ROHS,LM79,ISTMT,TM21 | |||
| Remark | * "XX" in all models stands for color temperature,with 3K,4K,5K,6K,3K=3000K,4K=4000K,5K=5000K,6K=6000K. | |||
