| Models | JUPITER50WXX | JUPITER80WXX | JUPITER100WXX | JUPITER120WXX | JUPITER150WXX | JUPITER200WXX |
|---|---|---|---|---|---|---|
| Wattage | 50W | 80W | 100W | 120W | 150W | 200W |
| Lumens | 6800 lm | 10800 lm | 13500 lm | 16200 lm | 20250 lm | 27000 lm |
| Input Voltage | 100-277V~50/60Hz | |||||
| Power Factor | 0.95, Flicker Free | |||||
| Colour Temperatures | 3000K;4000K;5000K;6000K or RGBW or Blue Light | |||||
| IP/IK Rating | IP65 / IK08 | |||||
| Dimming (Options) | DALI - Dali Dimming;DSI - Digital Serial Interface; AD - Analogue Dimming;DIM - Leading/Trailing/Universal | |||||

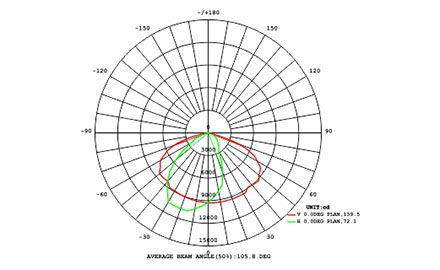

| Beam Angle (Options) | 150*75°/90*90°/Forward Throw/15°/30°/60° | |||||
| CRI | ≥80 Ra | |||||
| Body Material | Die-Casting Aluminium ADC12 | |||||
| Cover | Tempered Glass | |||||
| Product Colour | Gray or Black | |||||
| Min/Max Operating Temp | -20℃ /+40℃ | |||||
| Life Time | 50,000 hrs | |||||
| Warranty | 5 years | |||||
| Certificates | SAA,C-Tick, ROHS,LM79,ISTMT,TM21 | |||||
| Remark | * "XX" in all models stands for color temperature,with 3K,4K,5K,6K,3K=3000K,4K=4000K,5K=5000K,6K=6000K. * Options: RGBW and Blue Light . | |||||
Specifications

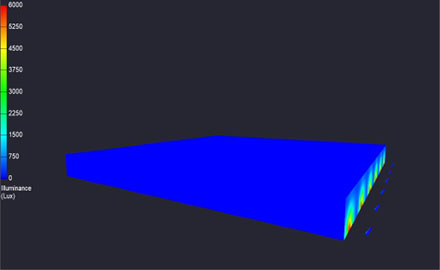

IES Files
